Rapid RH® Total Reader® with LCD and Bluetooth®

USD $178.00

The Rapid RH® L6 Total Reader® combines the Easy Reader and Smart Reader into one convenient device. Quickly reads concrete and ambient conditions and automatically sends the data via Bluetooth® to the DataMaster™ L6 app.

**The Total Reader doesn’t work with the 4.0 EX sensors.

Clear

Product Description

Your smart device will detect any Wagner Meters wireless device that features Bluetooth connectivity such as the Smart Logger or Orion 950 Smart Pinless Wood Moisture Meter, and perform the pairing procedure automatically. There is nothing you need to do, the devices do the work for you.

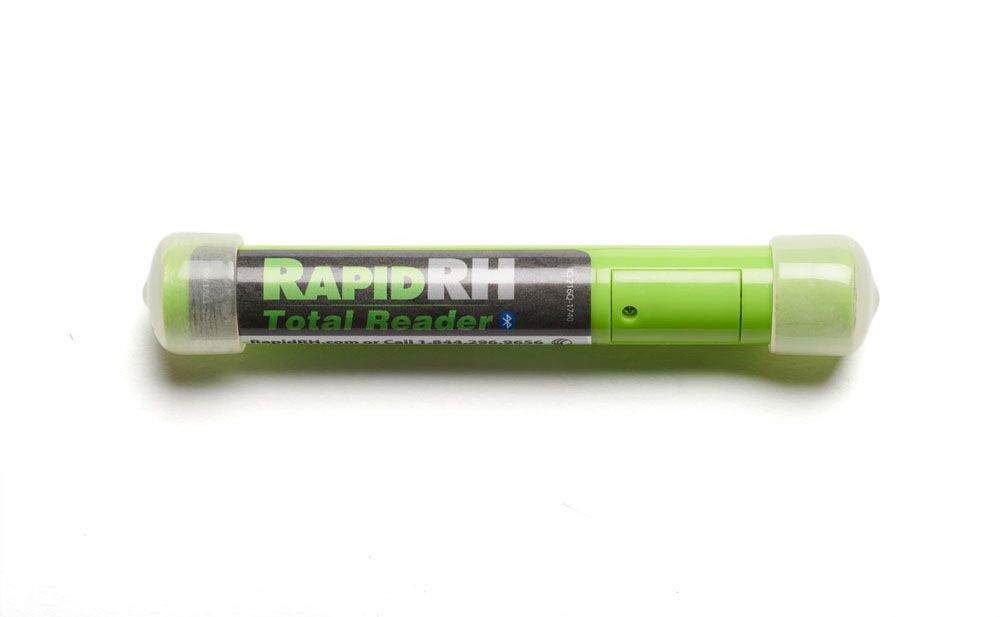

The new Rapid RH® Total Reader® combines the Easy Reader and the Smart Reader into one convenient device. The Total Reader works with the Rapid RH L6 Smart Sensors to read relative humidity (RH) and temperature from the concrete, while its built-in sensor reads ambient conditions at the same time. Concrete and ambient readings are automatically sent via Bluetooth® to the FREE DataMaster™ L6. The Total Reader comes with one CR1/3N battery.

**Please note that, while the Rapid RH Total Reader adds remarkable new functionalities and durability, the enhanced design (making the pins more ruggedized) makes the unit incompatible with versions of Rapid RH Smart Sensors released before L6.

When transferring sensor data to the FREE DataMaster L6 app on your smart device, the number of readings that can be stored is only limited by the storage capacity of your smart device. This new Rapid RH L6 integrated data storage capability makes it even easier to prove the validity of your readings at any time in the future. Plus, it generates PDF reports that can be sent to the client directly from your mobile device. The combination of the Total Reader and the DataMaster L6 app is a complete data reading, storage and reporting system that provides comprehensive data integrity.

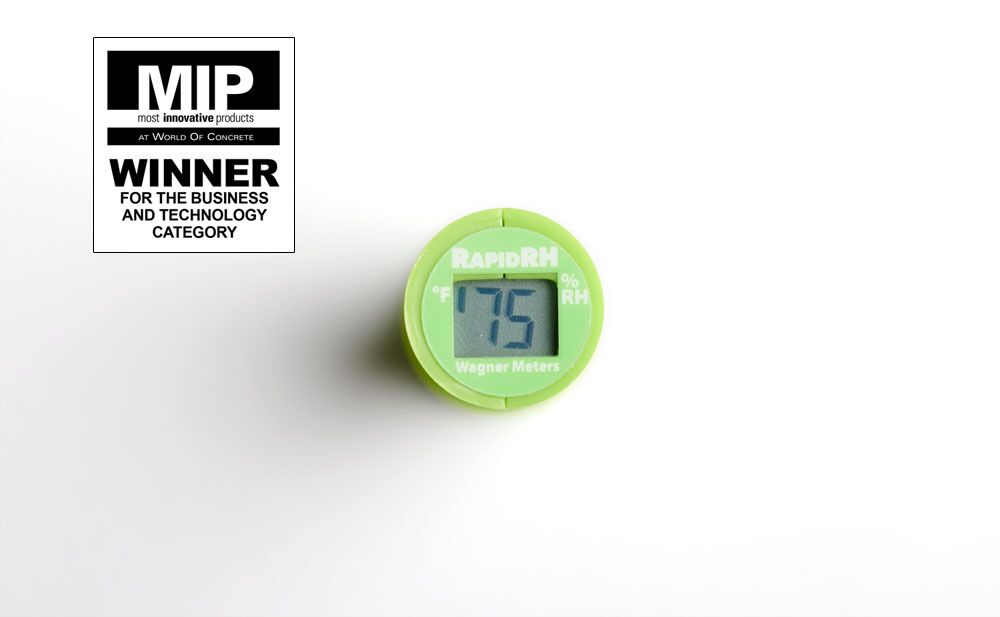

The Most Innovative Product (MIP) is awarded to concrete-related products submitted from around the world and voted upon by industry professionals during the annual World of Concrete event. Categories range from Business and Industry to Materials.

I still have 4.0EX sensors. How does this affect me?

You’re still working with the best concrete RH test in the industry. Feel free to use the rest of your 4.0EX Smart Sensors.

When you’re ready to replenish your sensor stock, simply order a new value pack of L6 sensors. You’ll also need the NEW Total Reader and the Rapid RH L6 Insertion Tool. Once you have these, you’re ready to make a seamless transition to the next generation of RH testing technology for a relatively small additional investment. We’re confident that you’ll be impressed with the added features.

View More Rapid RH L6 FAQs

Questions? Give us a call: (541) 291-5123

Downloads

 Rapid RH® L6 Manual

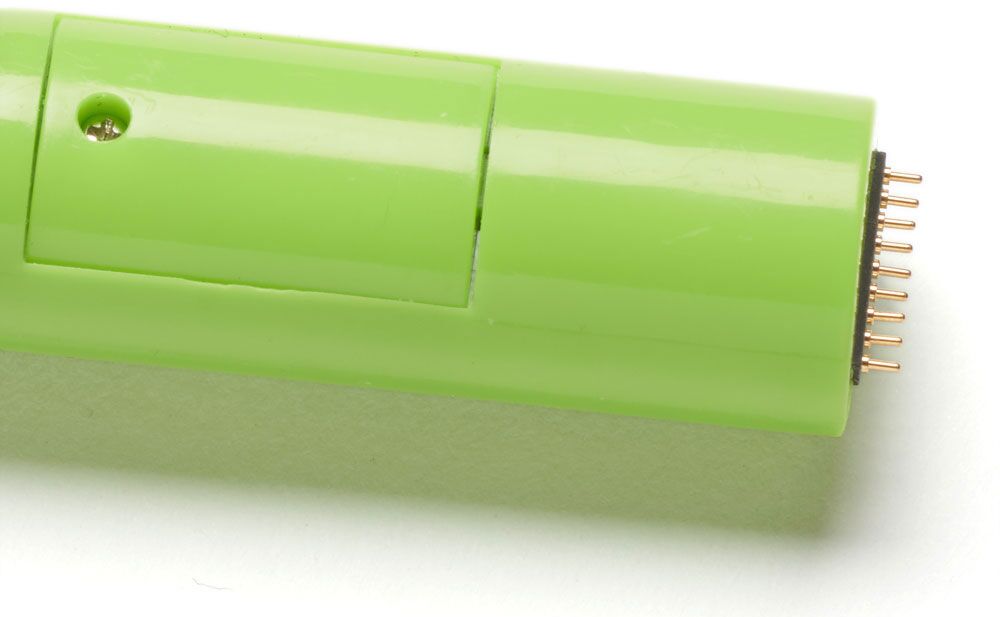

Replace the battery: The Total Reader will read “LO” when the battery is running low. The Total Reader comes with one CR1/3N battery. To replace the battery, open up the battery cover by removing the one battery cover screw with a jeweler’s Phillips screwdriver. DO NOT OPEN UP THE FULL BODY OF THE TOTAL READER AT ANY TIME.

 Rapid RH® L6 eBrochure
  Rapid RH® L6 eBrochure – ESPAÑOL
  How to use the DataMaster™ L6 App

DataMaster™ L6

Datamaster Icon
The DataMaster™ L6 improves upon the incredible utility of the DataMaster 5.0 app with streamlined navigation to information and reporting functions making your concrete slab relative humidity (RH) testing faster and easier than before. The DataMaster L6 app connects via Bluetooth® to the Rapid RH® Total Reader® for a completely wireless system of reading, recording, and reporting your concrete slab moisture test data. The DataMaster L6 takes advantage of an unbroken stream of data to give you the highest level of data integrity.

  • Capture, assemble, and email all data necessary to adhere to the ASTM F2170 standard.
  • Ensure the integrity of your critical Rapid RH data from sensors and email “READ ONLY” reports.
  • Link all recorded data to your job site’s sensor locations with a mapping function.
  • Input job metadata such as job name, address, and hole depth.
  • Add photos, audio memos, and text notes to your job info.
  • Print reports directly from your smart device.
  • Easily upload your job data to the F2170reports.com website.

Rapid RH L6 now includes automated data logger technology. The DataGrabber with Bluetooth, a self-contained device designed to fit inside a Rapid RH L6 Smart Sensor, will periodically engage the sensor to store time-stamped concrete temperature and RH readings according to the time interval set by the user. The DataGrabber with Bluetooth connects directly to the free DataMaster L6 app for wireless download of sensor readings and programming of sensor reading intervals. A smaller version of the DataGrabber is configured by contacting the Rapid RH Total Reader to connect with the DataMaster L6 app. While connected, with either version of the DataGrabber, you can also download all previous time-stamped concrete RH and temperature readings directly from the L6 Smart Sensor.

The DataMaster L6 app is designed to be used only with Rapid RH L6 Smart Sensors, Rapid RH DataGrabbers, and the Rapid RH Total Reader for fast, accurate, and reliable RH testing.

Datamaster Apple App  Datamaster Android App



Rapid RH L6: How to Install (The Right Way)

How To Remove Battery

DataMaster L6 Tutorial

FAQs

What does equilibration mean when talking about moisture testing?
Equilibration, or when moisture readings in a concrete slab stabilize and stop changing, occurs when a drilled hole achieves thermal and moisture equilibrium. For the accuracy of the readings, it is necessary to wait until equilibrium is restored after drilling. In most cases, the Rapid RH® Smart Sensor will be within 3-5% of the final reading one hour after installation. Follow ASTM F2170 procedures pertaining to equilibration time. Once equilibration is achieved, future readings can be taken instantaneously with the Rapid RH® Total Reader® or Smart Reader.

What is Touch-n-Sense™ Technology (for L6)?

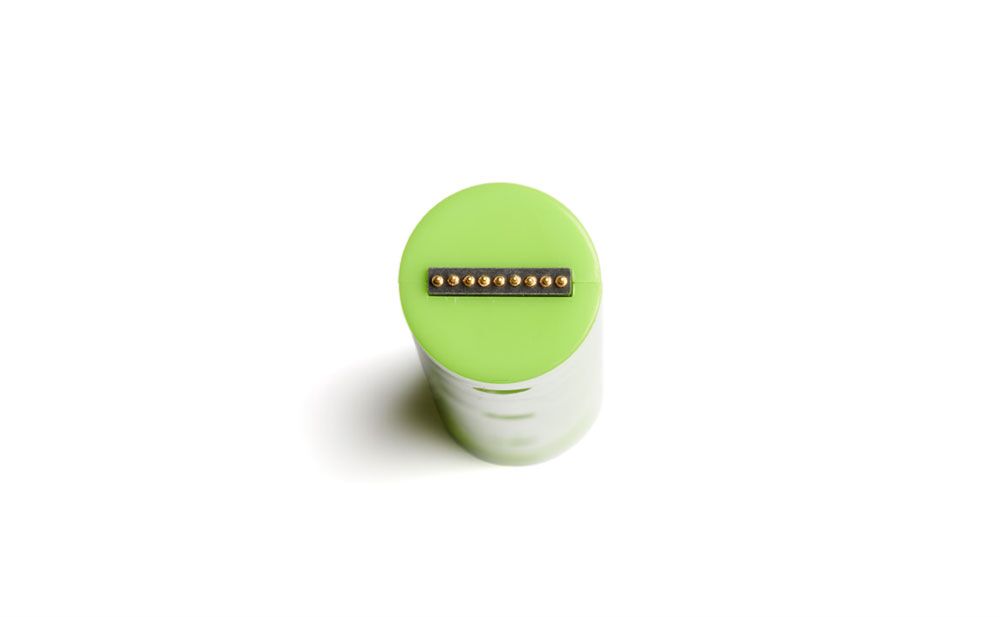

Touch-n-Sense™ is our patent-pending technology, integrated into the Rapid RH® Total Reader to enable it to automatically take a reading when placed in contact with the Rapid RH® L6 Smart Sensors. Once the bottom of the Total Reader makes contact with the Smart Sensor, it takes a reading. The Total Reader holds the reading for 5 minutes, even when removed from the test hole. It also sends send readings to your mobile device via Bluetooth®. It’s just that easy.

How long will the display on the Rapid RH® Total Reader stay on?
The display on the Rapid RH® Total Reader will toggle between RH (%) and temperature readings for a period of five minutes before it turns itself off.

Does my Rapid RH® Total Reader need to be calibrated periodically?
No. Each Rapid RH Smart Sensor has an embedded calibration from the factory.* The Total Reader simply displays what the Smart Sensor tells it. Therefore, no calibration is necessary.
