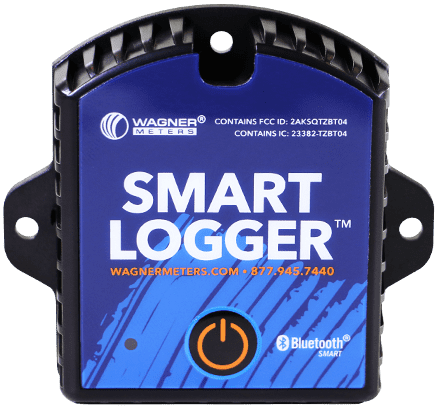

Smart Logger™ | Bluetooth® Temperature & Humidity Data Logger

(2 customer reviews)

From USD $85.00

The Smart Logger is a discrete Bluetooth temperature and humidity data logger. Captures, records, and sends up to 12,000 readings or 300 days of ambient temperature and relative humidity data.

Clear


SKU: N/A
Categories: , , ,

About the Smart Logger™

Your smart device will detect any Wagner Meters wireless device that features Bluetooth connectivity such as the Smart Logger or Orion 950 Smart Pinless Wood Moisture Meter, and perform the pairing procedure automatically. There is nothing you need to do, the devices do the work for you.

Smart Temperature and Humidity Monitoring

The Smart Logger™ is a small, lightweight, easily portable and highly accurate monitoring device that tracks ambient temperature and humidity conditions when flooring professionals are away from the job site. It can also be utilized during the wood flooring acclimation process and the storage of wood flooring. The Smart Logger is capable of storing up to 12,000 pieces of data over a period of up to 300 days.

The Smart Logger monitor incorporates the latest Bluetooth® technology and works in tandem with the Smart Logger app, which can be downloaded for free at the Apple Store or Google Play. The app connects the Smart Logger monitor through a mobile device’s Bluetooth (Android or iOS devices), enabling users to transmit and record data, and even send reports via email.

Technical Details:

  • Signal Transmission Frequency: 2.400 – 2.4835GHz
  • Protocol Standard: Bluetooth® 4.0
  • Modulation Mode: GFSK
  • Transmit Interval: 2S, adjustable
  • Output Power: -4 dBm, adjustable
  • Communication Rate: 1 Mbps
  • Transmission Distance: Up to ~180 ft (55 meters), adjustable
  • Storage: 12,000 data measurements
  • Temperature Measurement Range: -77°F (-25°C~) 140°F (60°C)
  • Operating Temperature Range: -77°F (-25°C~) 140°F (60°C)
  • RH Measurement Range: 0~100%RH
  • Temperature Measurement Accuracy: ±0.3°
  • RH Measurement Accuracy: ±3%RH
  • Net Weight: 1 ounce (30g)
  • Dimensions: 2.3 in. (58mm) 2.5 in. (64mm) 0.8 in (20mm) (This includes the mounting tabs)
  • Material: ABS, PCB, FR4
  • Shape: Square
  • Power Source: Battery Powered
  • Batteries Included? Yes
  • Batteries Required? Yes
  • Battery Cell Type: Lithium
  • Built-in Battery: CR2450 3V 550mAh (Battery is replaceable)
  • Battery Life: 300 days (Dependent upon mode and frequency of operation)
  • Warranty Description: 1 year
  • Shipping Weight: 1 lb (.45 kg)

Have questions? Give us a call: (541) 291-5123.

Downloads

 Smart Logger™ User Manual

Smart Logger™ app

Wagner Meters Smart Logger app available in the Apple iTunes and Google Play Store
The Wagner Meters Smart Logger™ app connects with the (required) Smart Logger device via Bluetooth® 4.0 connection and enables you to monitor and record ambient relative humidity and temperature data in real time from up to 300 devices for up to 300 days. The app’s user-friendly interface allows you to program reading intervals, set alarm ranges, and email up to 12,000 data reports directly from the job site.

The only way to be sure service conditions remain is through constant observation and recording. The Wagner Meters Smart Logger monitor device and the Smart Logger app are your eyes on the job site 24 hours a day.

  • Save time and money by reducing the need for excess job site visits to monitor ambient conditions.
  • Reduce your liability and avoid “the blame game” with documented monitoring of job site conditions.
  • Maintain your great reputation by using the latest technology to ensure successful outcomes.

Smart Logger Apple AppSmart Logger Android App

Videos

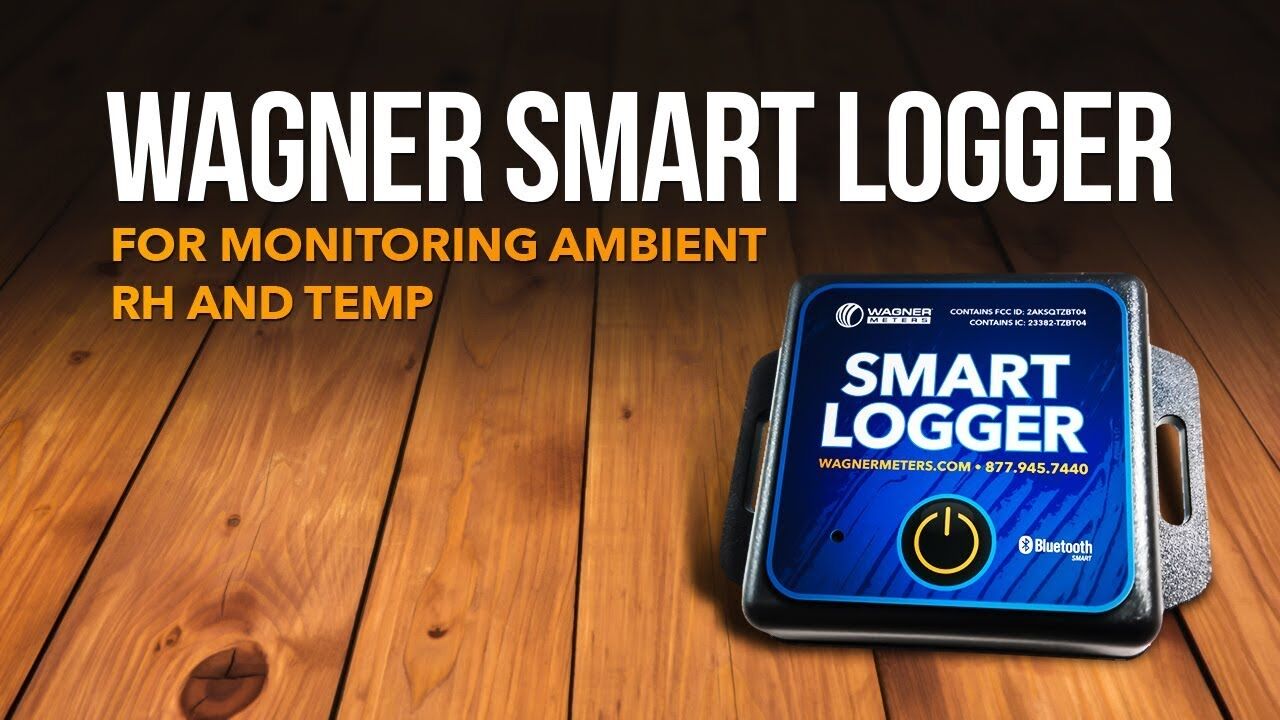

Monitoring and Recording Ambient Conditions with the Smart Logger™

Making Flooring Professional’s Life Easier [Best Practices]

2 reviews for Smart Logger™ | Bluetooth® Temperature & Humidity Data Logger

  1. Sean T James (verified owner) –

    This is a very valuable tool! Super easy to use and at that price point why not buy one for every job. Its a very small and easy cost to add to each job that in return will benefit you and your customers.

  2. Terry Carroll (verified owner) –

    Maybe a note to say it is split into Android and IOS I was convinced I had a problem, I was looking at the Android instructions using an IOS phone, once I figured that out it’s been very good, keep up the good work
