WFP350+ Rapid RH® L6 Advanced Concrete Moisture Test Kit with Bluetooth DataGrabbers®

USD $1,326.00

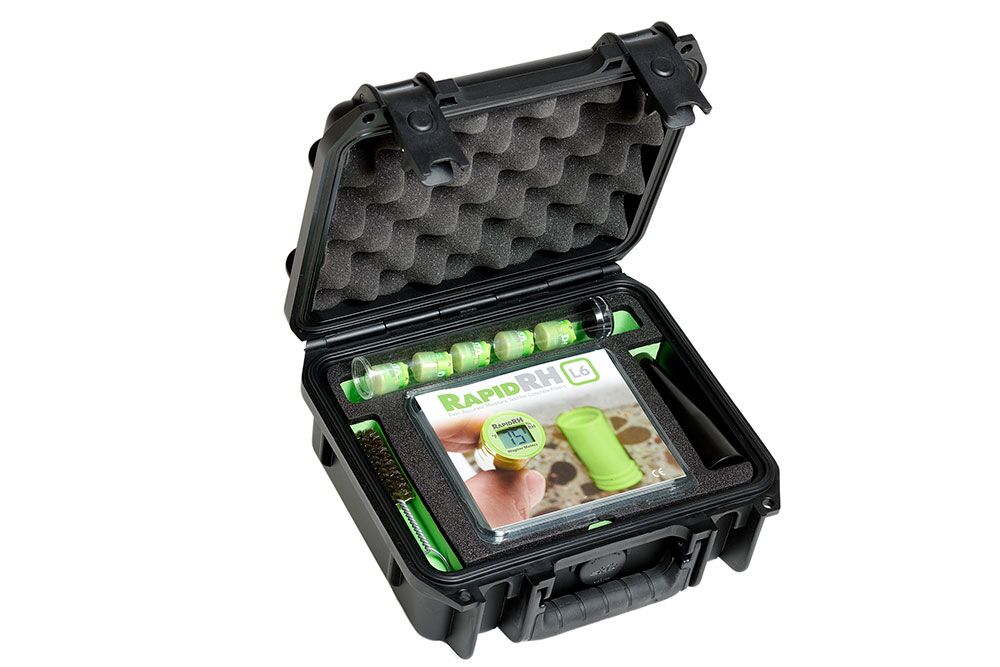

Advanced concrete moisture test kit with Rapid RH® L6 Starter Kit, 5 L6 Bluetooth® DataGrabbers® and rugged hard-shell ABS carrying case.

Clear

Product Description

Your smart device will detect any Wagner Meters wireless device that features Bluetooth connectivity and will perform the pairing procedure automatically. There is nothing you need to do, the devices do the work for you.

The WFP350+ Rapid RH L6 Advanced Concrete Moisture Test Kit with DataGrabbers provides everything you need for fast, accurate moisture testing of concrete.

The Rapid RH Smart Sensors and Total Reader® enable fast, accurate RH and temperature readings from both the concrete slab and the ambient air.

The L6 DataGrabber automates data collection and transmits data to the free DataMaster™ L6 app without the need for the Total Reader. Snap it into the L6 Smart Sensor, then use the DataMaster L6 app to set up a schedule for data collection. Use the free DataMaster L6 app to collect data directly from all DataGrabbers within Bluetooth® range. (The DataMaster L6 app requires iOS 10.0 and Android 7.2 or later.)

The improved protective caps completely cover the test hole and seal it with a butyl rubber gasket. The integral access cover pulls off for quick access to the Smart Sensor and snaps back on to seal out water and dirt.

The Smart Logger™ automatically records ambient RH and temperature readings on-site while you’re away. Download readings from the Smart Logger using the free Smart Logger app and any Bluetooth-enabled mobile device. (The Smart Logger app requires iOS 10.0 and Android 4.4 or later.)

Each Smart Sensor pack comes with a NIST-traceable calibration certificate and comes in tamper-resistant packaging to ensure perfectly calibrated, genuine Wagner Smart Sensors.

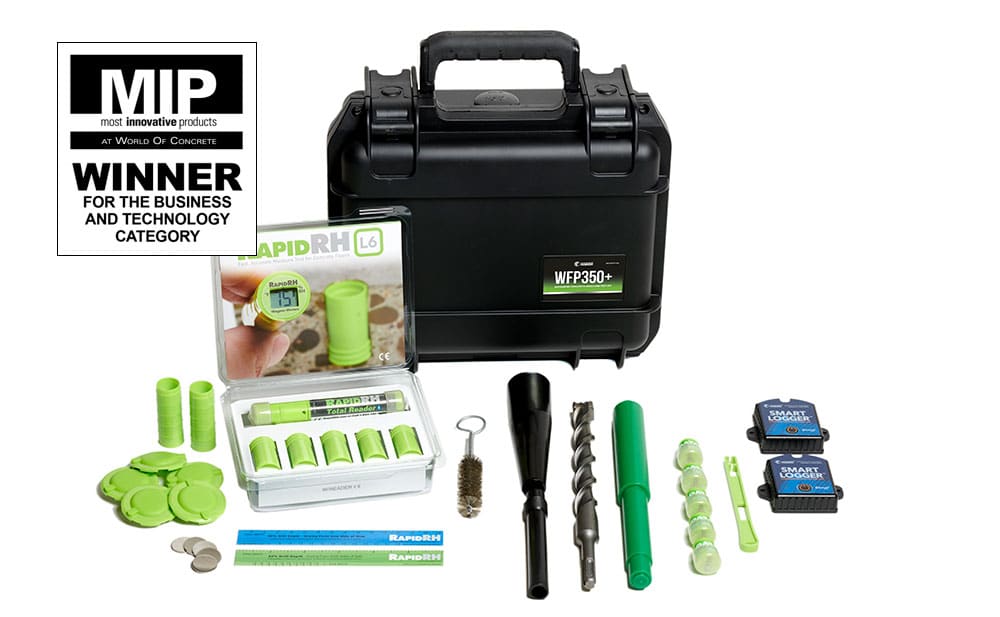

Includes:

  • Tube of 5 ea. L6 Bluetooth DataGrabbers and Extraction Tool
  • Rugged Hard-shell ABS Carrying Case with Foam-padded Interior
  • Rapid RH L6 Starter Kit:
    • 5 ea. L6 Smart Sensors
    • 2 ea. Smart Logger Ambient RH and Temperature Recorders
    • 10 ea. Sleeve Extensions
    • 5 ea. Protective Caps with Butyl Rubber Seal and Integral Access Cover
    • 5 ea. Stainless Steel Covers
    • Rapid RH Total Reader with LCD and Bluetooth
    • L6 Insertion Tool
    • ¾” SDS Masonry Drill Bit
    • Wire Cleaning Brush
    • Vacuum Attachment
    • Certificate of Calibration
    • Floor Map
    • Instruction Manual

The Most Innovative Product (MIP) is awarded to concrete-related products submitted from around the world and voted upon by industry professionals during the annual World of Concrete event. Categories range from Business and Industry to Materials.

Questions? Give us a call: (541) 291-5123.



Downloads

Documents

   Rapid RH® L6 Manual
   Rapid RH® L6 eBrochure
   Rapid RH® L6 eBrochure – Spanish
  DataGrabber® Data Logger Manual
  Smart Logger™ User Manual
  How to use the DataMaster™ L6 App

Smart Logger™ app

Wagner Meters Smart Logger app available in the Apple iTunes and Google Play Store
The Wagner Meters Smart Logger™ app connects with the (required) Smart Logger device via Bluetooth® 4.0 connection and enables you to monitor and record ambient relative humidity and temperature data in real time from up to 300 devices for up to 300 days. The app’s user-friendly interface allows you to program reading intervals, set alarm ranges, and email up to 12,000 data reports directly from the job site.

The only way to be sure service conditions remain is constant observation and recording. The Wagner Meters Smart Logger monitor device and the Smart Logger app are your eyes on the job site 24 hours a day.

  • Save time and money by reducing the need for excess job site visits to monitor ambient conditions.
  • Reduce your liability and avoid “the blame game” with documented monitoring of job site conditions.
  • Maintain your great reputation by using the latest technology to ensure successful outcomes.

Smart Logger Apple AppSmart Logger Android App

DataMaster™ L6

Datamaster Icon
The DataMaster™ L6 improves upon the incredible utility of the DataMaster 5.0 app with streamlined navigation to information and reporting functions making your concrete slab relative humidity (RH) testing faster and easier than before. The DataMaster L6 app connects via Bluetooth® to the Rapid RH® Total Reader® for a completely wireless system of reading, recording, and reporting your concrete slab moisture test data. The DataMaster L6 takes advantage of an unbroken stream of data to give you the highest level of data integrity.

  • Capture, assemble, and email all data necessary to adhere to the ASTM F2170 standard.
  • Ensure the integrity of your critical Rapid RH data from sensors and email “READ ONLY” reports.
  • Link all recorded data to your job site’s sensor locations with a mapping function.
  • Input job metadata such as job name, address, and hole depth.
  • Add photos, audio memos, and text notes to your job info.
  • Print reports directly from your smart device.
  • Easily upload your job data to the F2170reports.com website.

Rapid RH L6 now includes automated data logger technology. The DataGrabber with Bluetooth, a self-contained device designed to fit inside a Rapid RH L6 Smart Sensor, will periodically engage the sensor to store time-stamped concrete temperature and RH readings according to the time interval set by the user. The DataGrabber with Bluetooth connects directly to the free DataMaster L6 app for wireless download of sensor readings and programming of sensor reading intervals. A smaller version of the DataGrabber is configured by contacting the Rapid RH Total Reader to connect with the DataMaster L6 app. While connected, with either version of the DataGrabber, you can also download all previous time-stamped concrete RH and temperature readings directly from the L6 Smart Sensor.

The DataMaster L6 app is designed to be used only with Rapid RH L6 Smart Sensors, Rapid RH DataGrabbers, and the Rapid RH Total Reader for fast, accurate, and reliable RH testing.

Datamaster Apple App  Datamaster Android App

DataMaster L6 Tutorial

Videos

How to install DataGrabber

How to Install DataGrabber with Bluetooth

What’s the difference?

Making Flooring Professional’s Life Easier [Best Practices]

Concrete Moisture Testing the Correct Way

FAQs

What does equilibration mean when talking about moisture testing?
Equilibration, or when moisture readings in a concrete slab stabilize and stop changing, occurs when a drilled hole achieves thermal and moisture equilibrium. For the accuracy of the readings, it is necessary to wait until equilibrium is restored after drilling. In most cases, the Rapid RH® Smart Sensor will be within 3-5% of the final reading one hour after installation. Follow ASTM F2170 procedures pertaining to equilibration time. Once equilibration is achieved, future readings can be taken instantaneously with the Rapid RH® Total Reader® or Smart Reader.

What is Touch-n-Sense™ Technology (for L6)?
Touch-n-Sense™ is our patent-pending technology, integrated into the Rapid RH® Total Reader to enable it to automatically take a reading when placed in contact with the Rapid RH® L6 Smart Sensors. Once the bottom of the Total Reader makes contact with the Smart Sensor, it takes a reading. The Total Reader holds the reading for 5 minutes, even when removed from the test hole. It also sends send readings to your mobile device via Bluetooth®. It’s just that easy.

How long will the display on the Rapid RH® Total Reader stay on?
The display on the Rapid RH® Total Reader will toggle between RH (%) and temperature readings for a period of five minutes before it turns itself off.

Does my Rapid RH® Total Reader need to be calibrated periodically?
No. Each Rapid RH Smart Sensor has an embedded calibration from the factory.* The Total Reader simply displays what the Smart Sensor tells it. Therefore, no calibration is necessary.
