Product Description

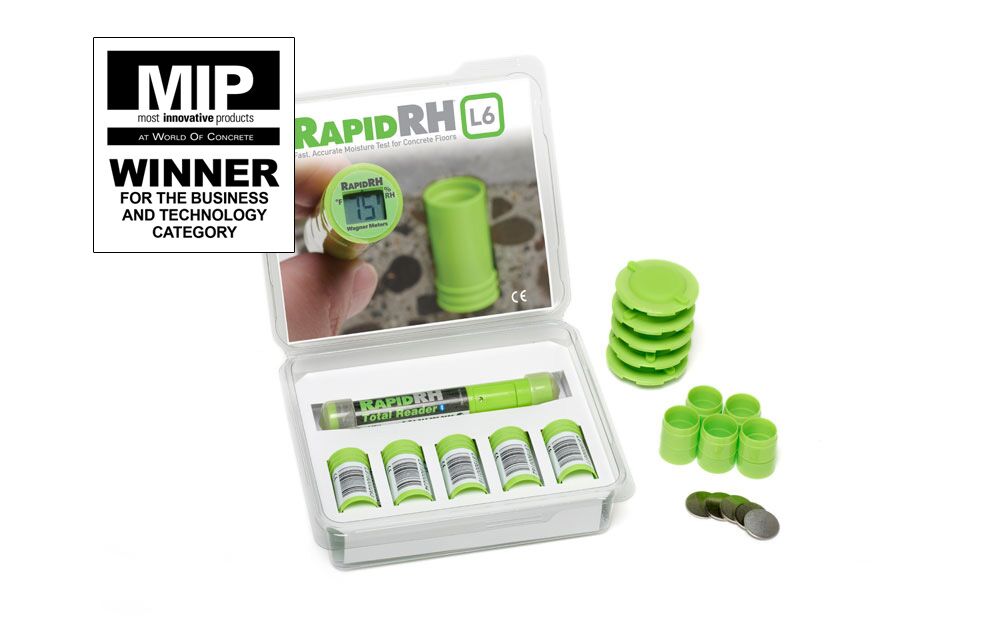

The Smart Sensor 5 Pack with Total Reader® includes 5 Rapid RH® L6 Smart Sensors and 1 Total Reader, plus Smart Sensor accessories.

The Rapid RH L6 Smart Sensors are factory calibrated using CMOSens® technology to ensure accurate readings. Each Smart Sensor pack comes with a NIST-traceable calibration certificate and comes in tamper-resistant packaging to ensure perfectly calibrated, genuine Wagner Smart Sensors.

The new Rapid RH Total Reader combines the Easy Reader and the Smart Reader into one convenient device. The Total Reader works with the Rapid RH L6 Smart Sensors to read RH and temperature from the concrete, while its built-in sensor reads ambient conditions at the same time. Concrete and ambient readings are automatically sent via Bluetooth® to the free DataMaster™ L6.

Includes:

1 ea. Total Reader with Bluetooth
5 ea. L6 Smart Sensors
10 ea. Extensions
5 ea. Protective Caps with Rubber Plugs and Butyl Gasket
5 ea. Stainless Steel Covers
Certificate of Calibration
Floor Map
Instruction Manual
One CR1/3N battery for the Total Reader

Rapid RH® L6 sensors feature a customized version of the SHT35 humidity sensor from Sensirion that has a +/-2% accuracy tolerance at 50% and 90% relative humidity (RH). This important aspect of the L6 concrete RH testing system puts it in direct compliance with ASTM F2170. Standard SHT35 humidity sensors, found in other concrete RH test systems, start to deviate from the +/-2% tolerance at RH levels as low as 50%.

The Most Innovative Product (MIP) is awarded to concrete-related products submitted from around the world and voted upon by industry professionals during the annual World of Concrete event. Categories range from Business and Industry to Materials.

Questions? Give us a call: (541) 291-5123

Downloads

Rapid RH® L6 Manual
Rapid RH® L6 eBrochure
Rapid RH® L6 eBrochure – ESPAÑOL
How to use the DataMaster™ L6 App

DataMaster™ L6

The DataMaster™ L6 improves upon the incredible utility of the DataMaster 5.0 app with streamlined navigation to information and reporting functions making your concrete slab relative humidity (RH) testing faster and easier than before. The DataMaster L6 app connects via Bluetooth® to the Rapid RH® Total Reader® for a completely wireless system of reading, recording, and reporting your concrete slab moisture test data. The DataMaster L6 takes advantage of an unbroken stream of data to give you the highest level of data integrity.

Capture, assemble, and email all data necessary to adhere to the ASTM F2170 standard.
Ensure the integrity of your critical Rapid RH data from sensors and email “READ ONLY” reports.
Link all recorded data to your job site’s sensor locations with a mapping function.
Input job metadata such as job name, address, and hole depth.
Add photos, audio memos, and text notes to your job info.
Print reports directly from your smart device.
Easily upload your job data to the F2170reports.com website.

Rapid RH L6 now includes automated data logger technology. The DataGrabber with Bluetooth, a self-contained device designed to fit inside a Rapid RH L6 Smart Sensor, will periodically engage the sensor to store time-stamped concrete temperature and RH readings according to the time interval set by the user. The DataGrabber with Bluetooth connects directly to the free DataMaster L6 app for wireless download of sensor readings and programming of sensor reading intervals. A smaller version of the DataGrabber is configured by contacting the Rapid RH Total Reader to connect with the DataMaster L6 app. While connected, with either version of the DataGrabber, you can also download all previous time-stamped concrete RH and temperature readings directly from the L6 Smart Sensor.

The DataMaster L6 app is designed to be used only with Rapid RH L6 Smart Sensors, Rapid RH DataGrabbers, and the Rapid RH Total Reader for fast, accurate, and reliable RH testing.

Videos

Rapid RH L6: How to Install (The Right Way)

Why is 40% the Magic Number for Concrete Moisture Testing?

How To Remove Battery

Making Flooring Professional’s Life Easier [Best Practices]

DataMaster L6 Tutorial

Concrete Moisture Testing the Correct Way

FAQs

What does equilibration mean when talking about moisture testing?
Equilibration, or when moisture readings in a concrete slab stabilize and stop changing, occurs when a drilled hole achieves thermal and moisture equilibrium. For the accuracy of the readings, it is necessary to wait until equilibrium is restored after drilling. In most cases, the Rapid RH® Smart Sensor will be within 3-5% of the final reading one hour after installation. Follow ASTM F2170 procedures pertaining to equilibration time. Once equilibration is achieved, future readings can be taken instantaneously with the Rapid RH® Total Reader® or Smart Reader.

What is Touch-n-Sense™ Technology (for L6)?
Touch-n-Sense™ is our patent-pending technology, integrated into the Rapid RH® Total Reader to enable it to automatically take a reading when placed in contact with the Rapid RH® L6 Smart Sensors. Once the bottom of the Total Reader makes contact with the Smart Sensor, it takes a reading. The Total Reader holds the reading for 5 minutes, even when removed from the test hole. It also sends send readings to your mobile device via Bluetooth®. It’s just that easy.

How long will the display on the Rapid RH® Total Reader stay on?
The display on the Rapid RH® Total Reader will toggle between RH (%) and temperature readings for a period of five minutes before it turns itself off.

Does my Rapid RH® Total Reader need to be calibrated periodically?
No. Each Rapid RH Smart Sensor has an embedded calibration from the factory.* The Total Reader simply displays what the Smart Sensor tells it. Therefore, no calibration is necessary.
